A larger piston on auto melamine compress machine delivers more uniform hydraulic pressure, supports larger and thicker melamine tableware production, reduces product defect rates, extends mold and machine service life, and lowers long-term production costs compared with standard small piston models.

Many melamine tableware manufacturers focus heavily on machine price, cycle speed and output capacity when sourcing compression molding equipment. One critical component is often overlooked: the piston. After more than 20 years manufacturing melamine dinnerware moulding machine and delivering numbers of customized production lines worldwide, the engineering team from Shunhao factory has observed that piston size directly shapes product quality, production flexibility and total cost of ownership.

How Piston Size Impacts Melamine Molding?

Melamine tableware forms under sustained high pressure as melamine powder fills and cures inside closed steel molds. The piston is the core hydraulic component that transfers force to the mold. The effective area of the piston determines pressure distribution across the mold cavity.

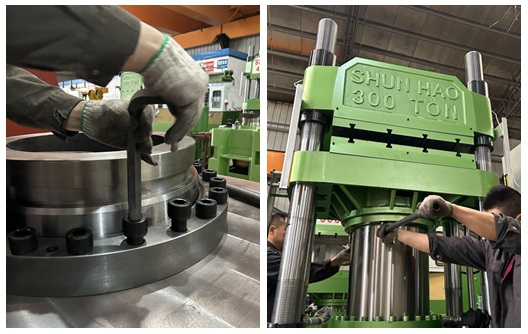

Genuine large-piston upgrades require matched oil circuits, reinforced bearing structures and optimized hydraulic power units. Without system-wide matching, a physically bigger piston will not deliver stable pressure and may accelerate component wear.

Insufficient piston area creates common molding defects: trapped bubbles, incomplete pattern transfer, uneven wall thickness and product warpage. These flaws hurt yield, waste melamine raw material and risk rejection for export food-grade orders.

Technical Parameters of Shunhao Brand Melamine Moulding Machine

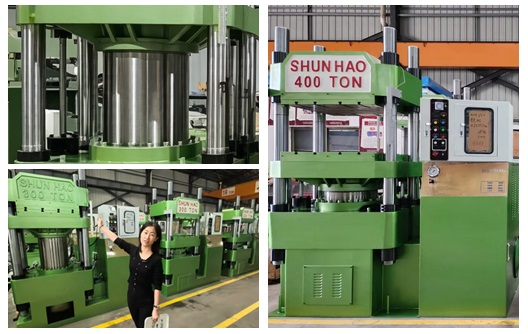

Function & Importance of Large Diameter Piston for Melamine Molding Machine

• Produce higher clamping force: Under the same hydraulic pressure, a larger piston diameter means bigger effective area and higher tonnage to counteract melamine expansion force during curing, avoiding flash and material leakage.
• Stable and even pressure output: Larger piston reduces pressure fluctuation, ensures uniform pressure on mold surface for consistent product thickness and smooth surface.
• Stronger resistance to offset load: High rigidity prevents piston sticking and eccentric wear, protecting oil seals when material is unevenly loaded.
• Lower working hydraulic pressure: To reach required clamping tonnage, the hydraulic system does not need to run at extreme pressure, reducing damage to pumps, valves and hoses.
• Match the 4 main tension tie bars: The clamping force generated by piston is borne by 4 tie bars. Piston tonnage must match tie bar strength to prevent tie bar deformation or breakage.

Core Differences of Using a Larger Piston:

1. Uniform Full-Coverage Pressure, Effectively Reduce Defect Rate

A larger piston spreads hydraulic force evenly over the full mold surface. Melamine powder compacts uniformly in every cavity section. The result is consistent texture, crisp patterns and fewer surface defects.

2. Support Diversified Production of Large & Thick Melamine Product

Larger piston molding machines unlock new product lines. Manufacturers can produce heavy hotel tableware, big catering trays, thick kids’ dinner sets and custom melamine components.

3. Stable Pressure Output, Reduce Mold Loss & Maintenance Frequency

Larger piston systems maintain balanced pressure through every molding cycle. Molds receive consistent, predictable loading. In field data from our installed lines, matched large piston machines extend average mold service life.

Piston size is one of the most impactful hidden factors determining hydraulic melamine molding machine performance and factory profitability. A properly engineered larger piston system can solve persistent molding defects, unlock new high-value product lines and cut total operating expenses over the machine lifespan.

With 20+ years of experience building melamine crockery molding equipment, our team can help you select the right piston and machine configuration according to your target products, production volume and export quality requirements. Contact us for professional equipment selection consultation and customized melamine molding machine solutions.

FAQ

Q1: What maintenance work is required for melamine molding machines daily?

A1: Clean mold surface, check hydraulic oil status, verify temperature stability and fasten machine structural parts.

Q2: Do melamine molding machines need special workshop installation conditions?

A2: They require flat reinforced ground, stable power supply and good ventilation for continuous operation.

Q3: What is the key to choosing a reliable melamine molding machine?

A3: Focus on systematic hydraulic matching, component material, overall stability and factory after-sales service.

Q4: How can I get a quotation for melamine molding machine?

A4: Welcome to reach out us at Email: machine@hongancn.com for quotations.
